Suitable for use cases where higher environmental resistance is required. The design of this series offers high rigidity of the entire cabinet.

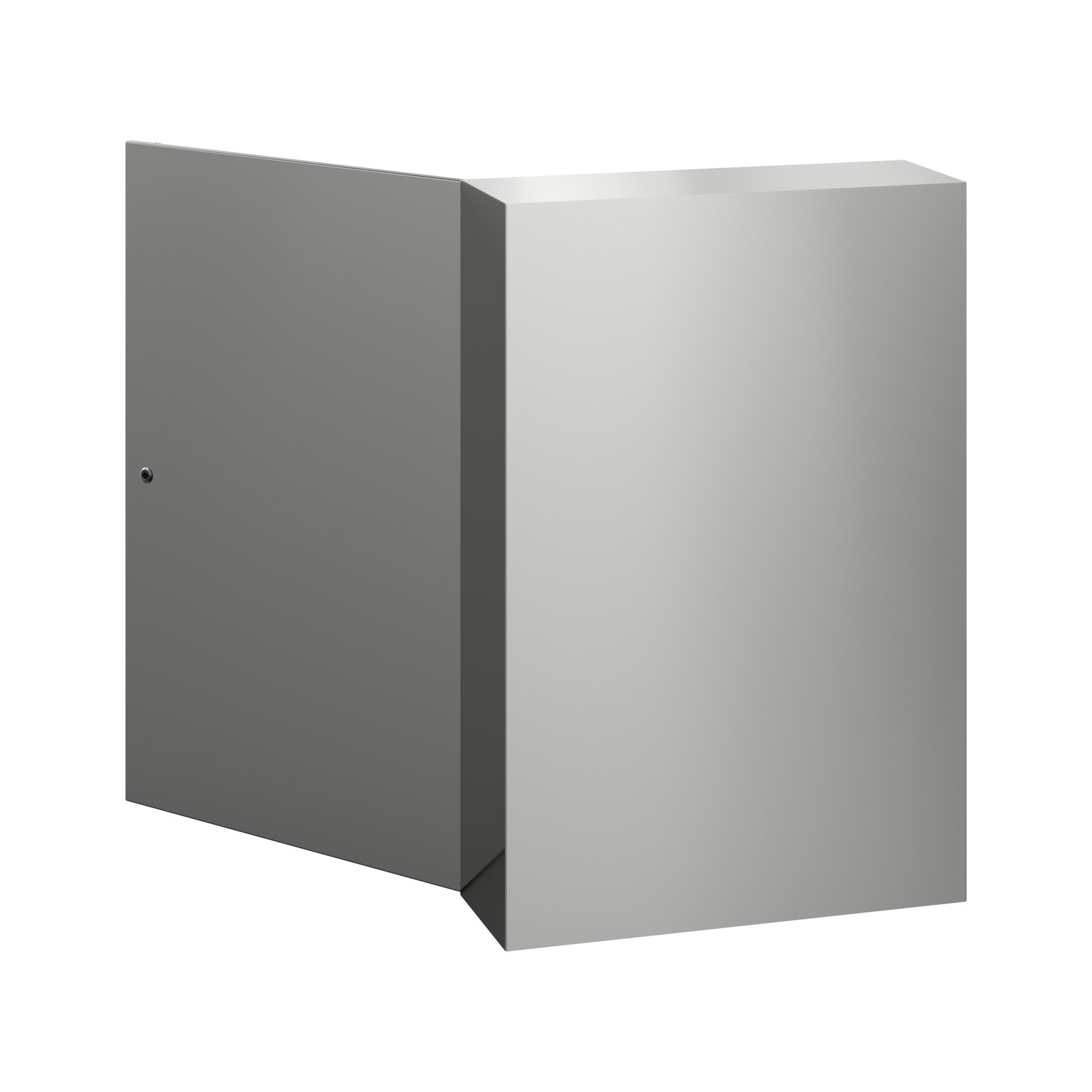

The WME-X compact stainless steel cabinets are suitable for use cases with higher requirements for resistance to the environment. The design of this series offers high rigidity not only of the rear panel, but also of the entire cabinet.
Laser welding technology gives the cabinets clean design.
| Product line name |
WME-X – stainless steel |
|---|---|
| IP rating |
IP66 single-door design / IP55 double-door design according to EN 60529 (the degree of protection may decrease after mounting certain accessories) |
| Note |
Upon request, we will make cutouts and threads in WME-X cabinets for installations. |
| Material |
Cabinet shell - stainless steel 1.4301 (AISI 304); stainless steel 1.4404 (AISI 316L) upon request |
| Surface treatment |
Finely brushed finish |
| Mechanical resistance |
IK10 according to IEC 62262 |
| Application |
Indoor and outdoor environment |
| Quotes |
WME-X19 is a special category of single-door stainless steel 19" cabinets suitable for IT equipment installations. As a standard, these cabinets are equipped with 19" rails. The cabinets are available in depths of 400 and 500 mm and heights of 12, 17 and 21U. For more information, see here >> |
| Customization options |
We will make cutouts, perforations and threads and mount accessories to your specific requirements. For more information, see here >> https://www.conteg.cz/clanek/modifikacni-sluzby |
Fans help maintain appropriate temperature inside the cabinet by forced ventilation, where heated air inside is being replaced with cold air from outside the cabinet.
Replacement mounting plate with 50x50 mm grid marking
Brackets for positioning of the mounting plate in the cabinet.
The inner door separates the control elements from the live parts inside the cabinet.
A door to provide access to control elements that may be installed on the cabinet’s full door.
We offer various types of locks and lock cylinders.
100 mm plinth as a fixed base for both indoor and outdoor cabinets.
Locks the door in the open position
Self-adhesive pouch for storing A4 documentation inside the cabinet.
LED lighting of the interior of the cabinet.
Glands ensure secure cable passage where high IP protection level and mechanical resistance are required.
Replacement metal cable tray for customizable cable routing in cabinets.
Perforated metal cable tray with pass-through frame.
Vertical perforated mounting rails for component installation.
Internal 19" fixed rails for installation of IT/telco equipment.
Perforated horizontal door bar for attaching cabling etc.
Designed for connecting WME series cabinets into rows while maintaining IP protection.
Perforated metal cable tray with round frame.
Complete assembly for attaching the cabinet to a pole.
Mounting kits for direct installation of the cabinet on the wall.
A complete set of grounding cables for cabinets
Metal perforated cable tray with membrane entry plate.
A switch that automatically controls the installed elements, e.g. lights, fan, air conditioning.
