Serie 70
Made in high-quality, high-impact ABS, they allow excellent mechanization and are resistant to temperatures up to 85 °C.

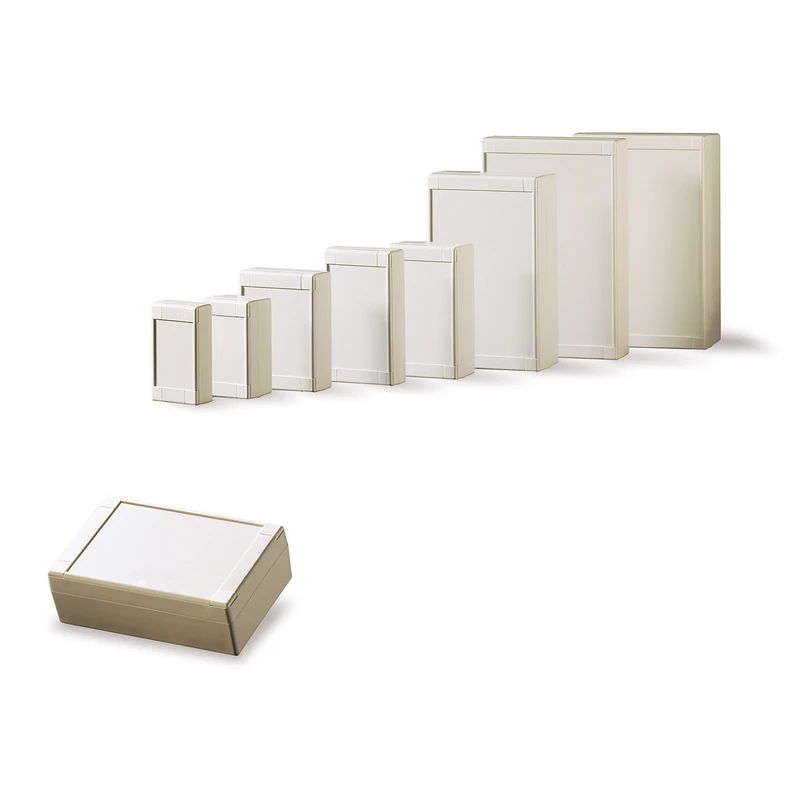

Universal Serie 70 enclosures for electronics in high-impact design meet various application needs within the industrial, electronics and office automation industries. Made in high-quality, high-impact ABS, they allow excellent mechanization and are resistant to temperatures up to 85 °C. With EPDM O-ring gasket, will comply to IP 65 protection in respect of dust and moisture.
DESCRIPTION
- Protection class: IP65
- The two halves of the boxes are fixed together using metric screws into M3 inserts. These screw fixings are hidden by plastic covers.
- Bosses for circuits in all lids and base parts (except -01 and -02 lids)
- Resistant to temperatures up to 85 °C
- A keyboard area of different sizes is provided on both the top and base of the box further increasing its flexibility
- Wall mounting facility is provided in two ways, either by separately designed feet or by pre-punched holes in the base
- Guides for PCB in vertical mode are incorporated in the base and lid together with 5 mm high bosses for horizontal fixing
- Basic unit includes: lid, base, 4 bolts and 4 covers
- Accessories: O-ring gasket, EPDM rubber; multi-position wall mounting kit
MATERIALS AND FINISH
- High-impact ABS plastic, excellent for machining
- Standard color: light grey—similar to RAL 7035, black—similar to RAL 9004
OPTIONAL
- Custom made drilling, silk-screen printing, internal EMI/RFI shielding, UL94V0 ABS, other colors
Datasheet—Enclosures for electronics
File size: 5789 kB
File size: 392 kB
File size: 882 kB
File size: 278 kB
File size: 180 kB
File size: 27 kB
File size: 20 kB
File size: 248 kB
File size: 232 kB
File size: 289 kB
File size: 41 kB
File size: 255 kB

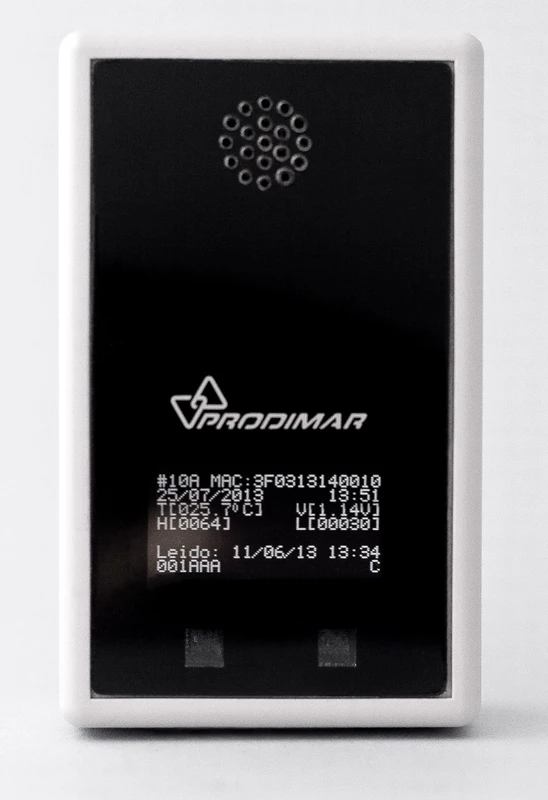

serie70-customized--datalogger-con-tecnologia-de-tag-activo-y-multitud-de-sensores.jpg
