Serie 110
Suitable for command, test or control applications with frontal display.
Instrument desktop Serie 110 enclosure for electronics are suitable for command, test or control applications with frontal display.
DESCRIPTION
- Modern design oriented to functionality, conceived to optimize both case or equipment mounting and the use of internal space

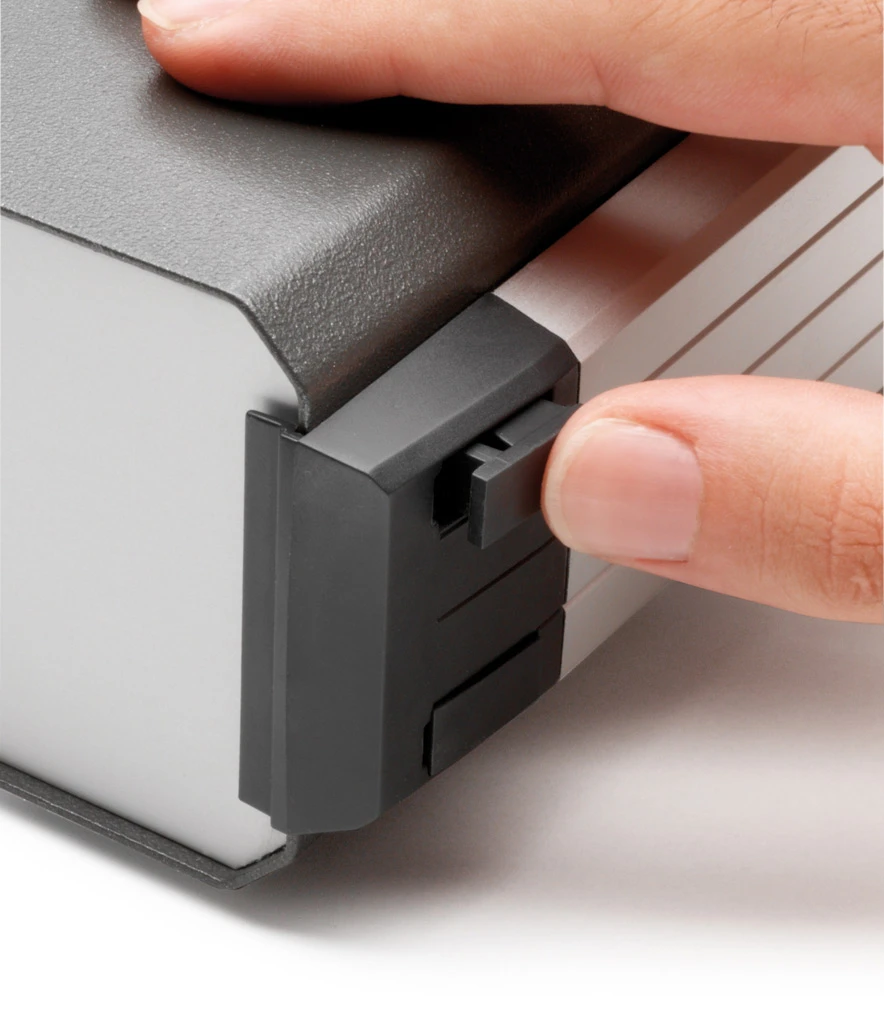

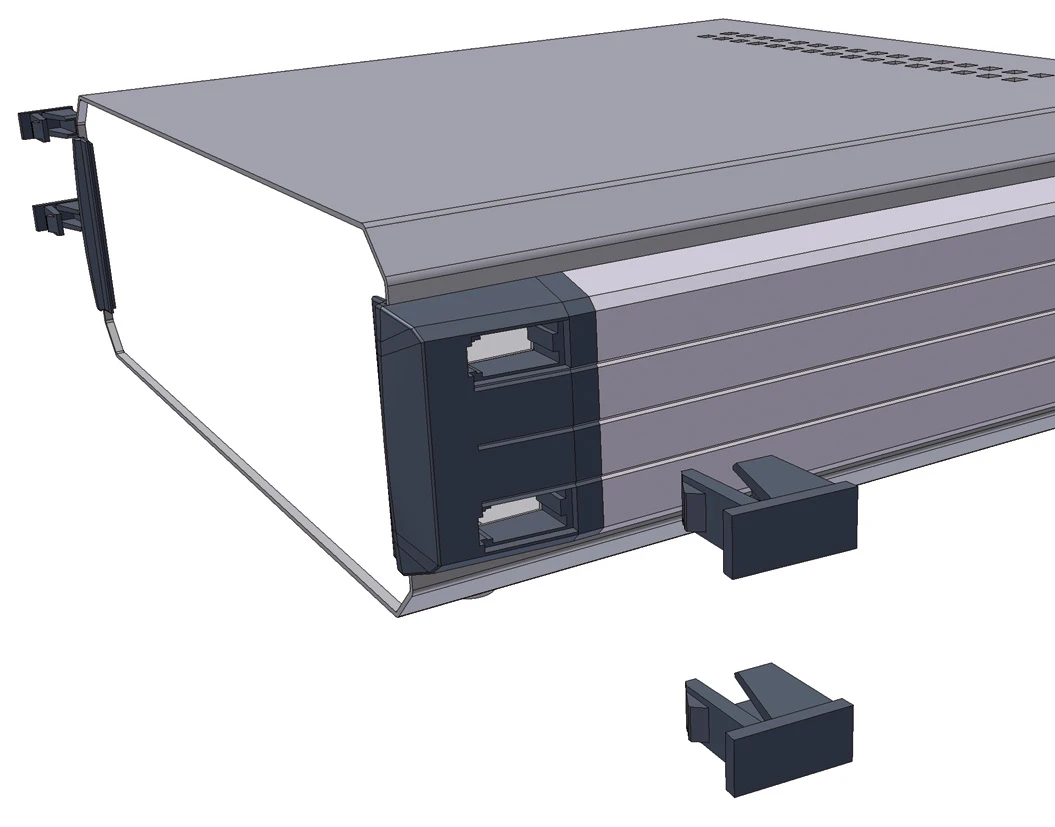

- Basic structure of the box by two side aluminum extrusion profiles, steel lid/base covers and plastic brackets, to which both panels are fixed
- Side profiles include rails for mounting PCB's or other components
- Front brackets include handles in types 5, 6 and 7, with lids that can be customized with your corporate color
- Lid and base cover can be dismounted independently
- Ventilation slots are provided on rear part of lid and base covers
- The four small-profile sizes has four non-slip feet
- The three larger sizes are supplied with tilt-feet
- Resistant to temperatures up to 85 °C (plastic pieces)
MATERIALS AND FINISH
- Lid and base—1 mm sheet steel, painted textured epoxy, in graphite grey color
- Side profiles—6063 aluminum extrusion, matt silver anodized
- Front/rear panels—1070 aluminum, 1 mm (types 1, 2, 3, 4) or 2 mm thick (types 5, 6, 7), silver anodized
- Brackets and tilt feet—high quality injected ABS, graphite grey color
OPTIONAL
- Custom-made special drilling, silk-screen printing, other colors available upon request
