Serie 102

Suitable for applications where there is a need for a transparent lid, such as applications including LCD's or counters with visual inspection.

Datasheet

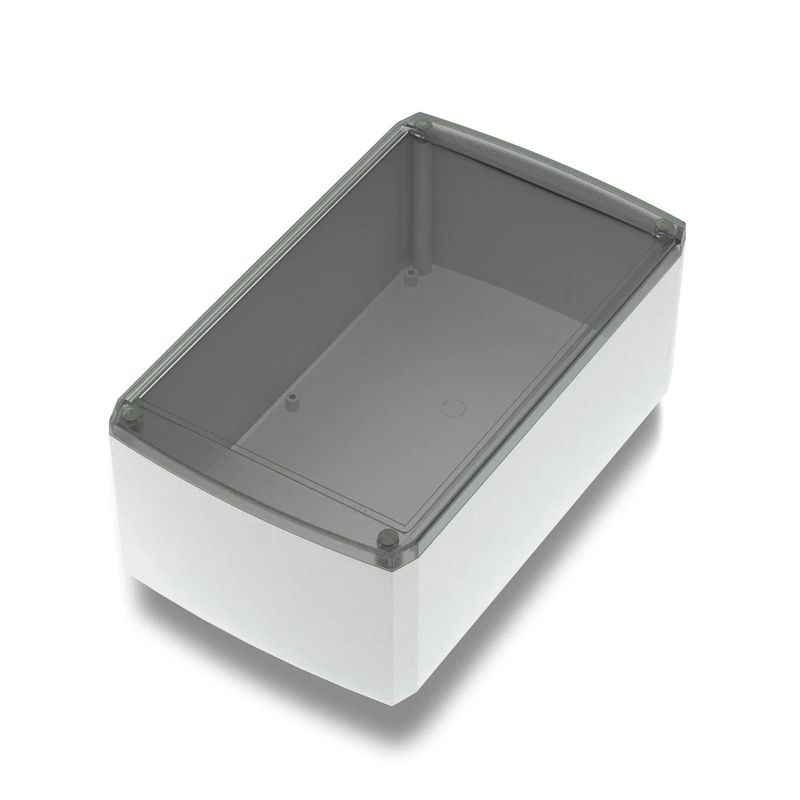

Serie 102 universal enclosures for electronics are suitable for applications where there is a need for a transparent lid, such as applications including LCD's or counters with visual inspection. Lid in high resistance polycarbonate plastic, bronze coloured. Allows 1.2 mm membrane keypads.

DESCRIPTION

Modern aesthetics with square edges and rounded lateral sides
Lid mounted by four M3 bolts, hidden by self-adapting rubber plugs
Double, lid and bottom, recessed area allows membrane keypads
Polished finish that allows an easy cleaning of the surface
Maximum internal volume
Bosses for mounting PCB in the base
Resistant to temperatures up to 85 °C
Basic unit includes: lid, base, 4 bolts and 4 plugs

MATERIALS AND FINISH

Lid and bottom—high impact ABS plastic, excellent for machining
Plugs—rubber
Standard color: light grey—similar to RAL 7035

OPTIONAL

Custom-made special drilling, silk-screen printing, internal painting to achieve EMI/RFI shielding (graphite, copper or nickel base, depending on desired value of protection), self-extinguishing ABS material UL 94 V0 rate, other colors available upon request
