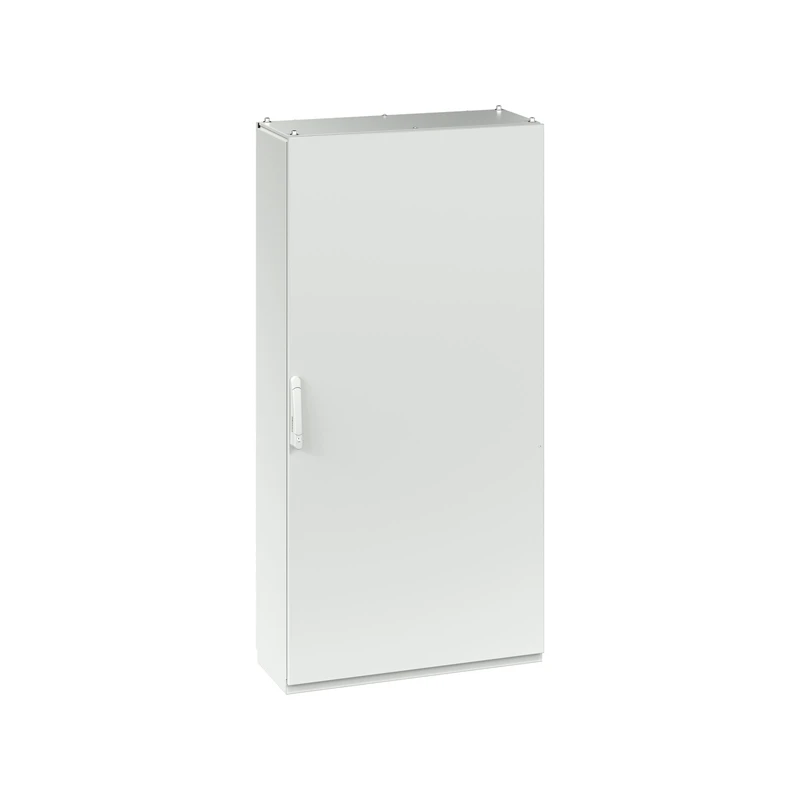

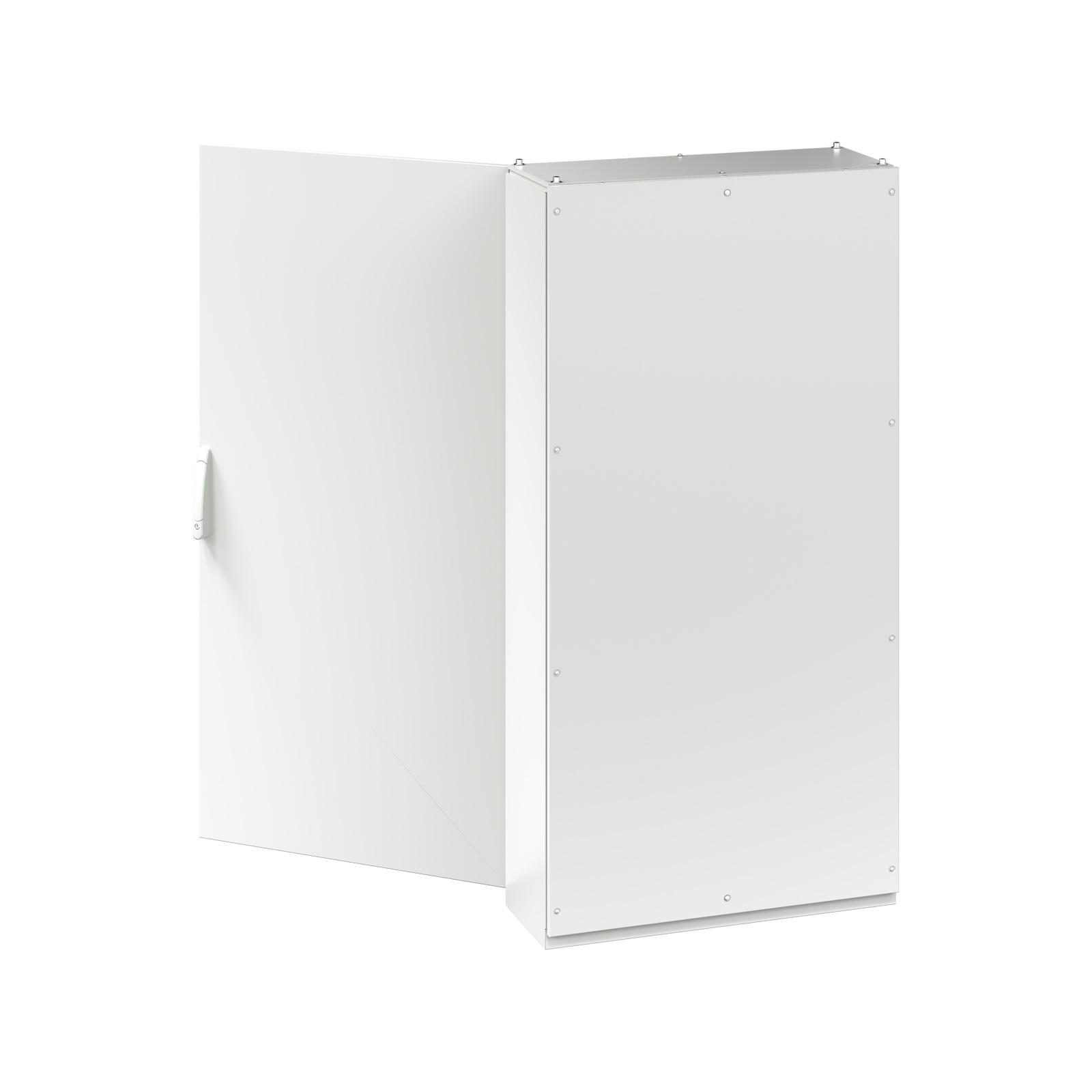

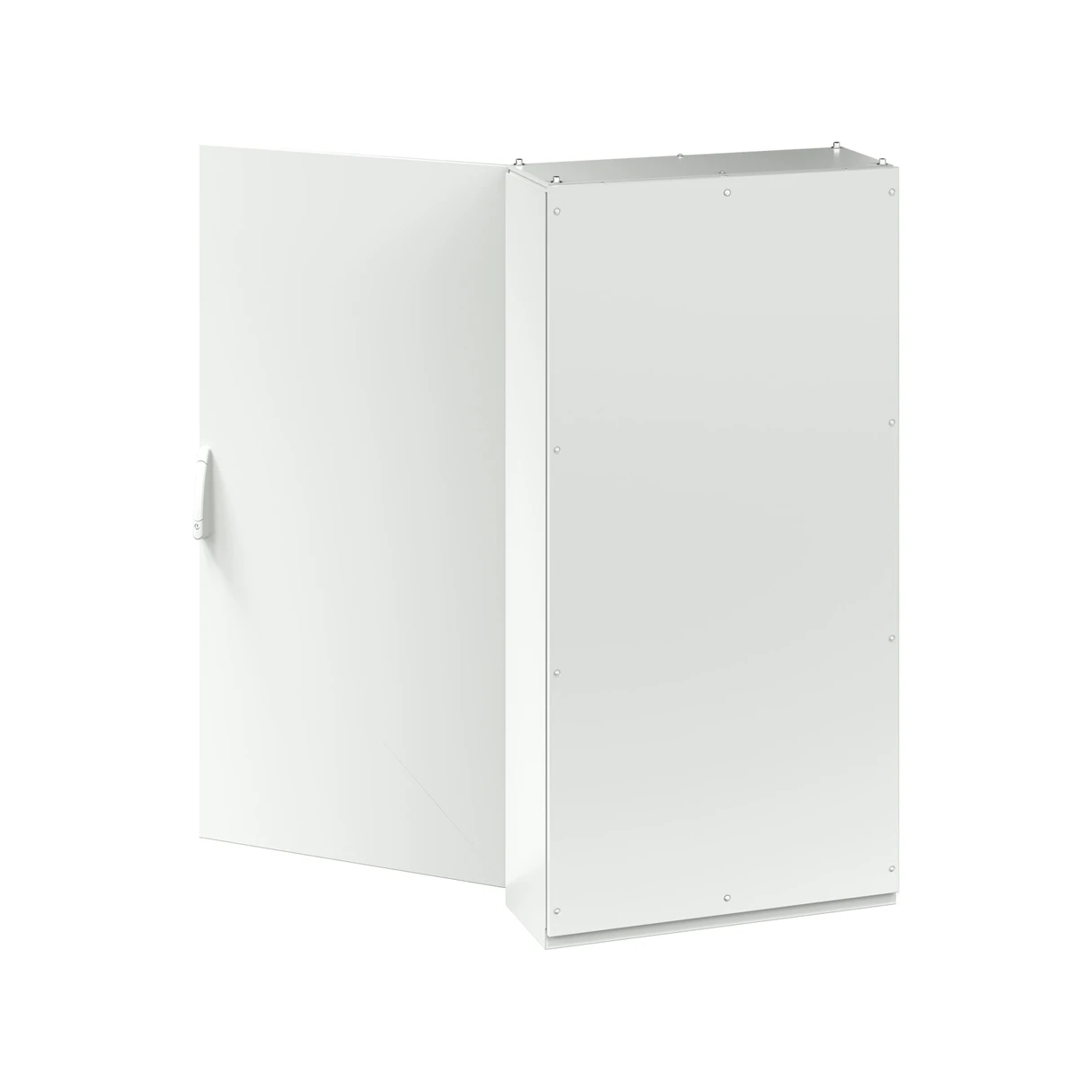

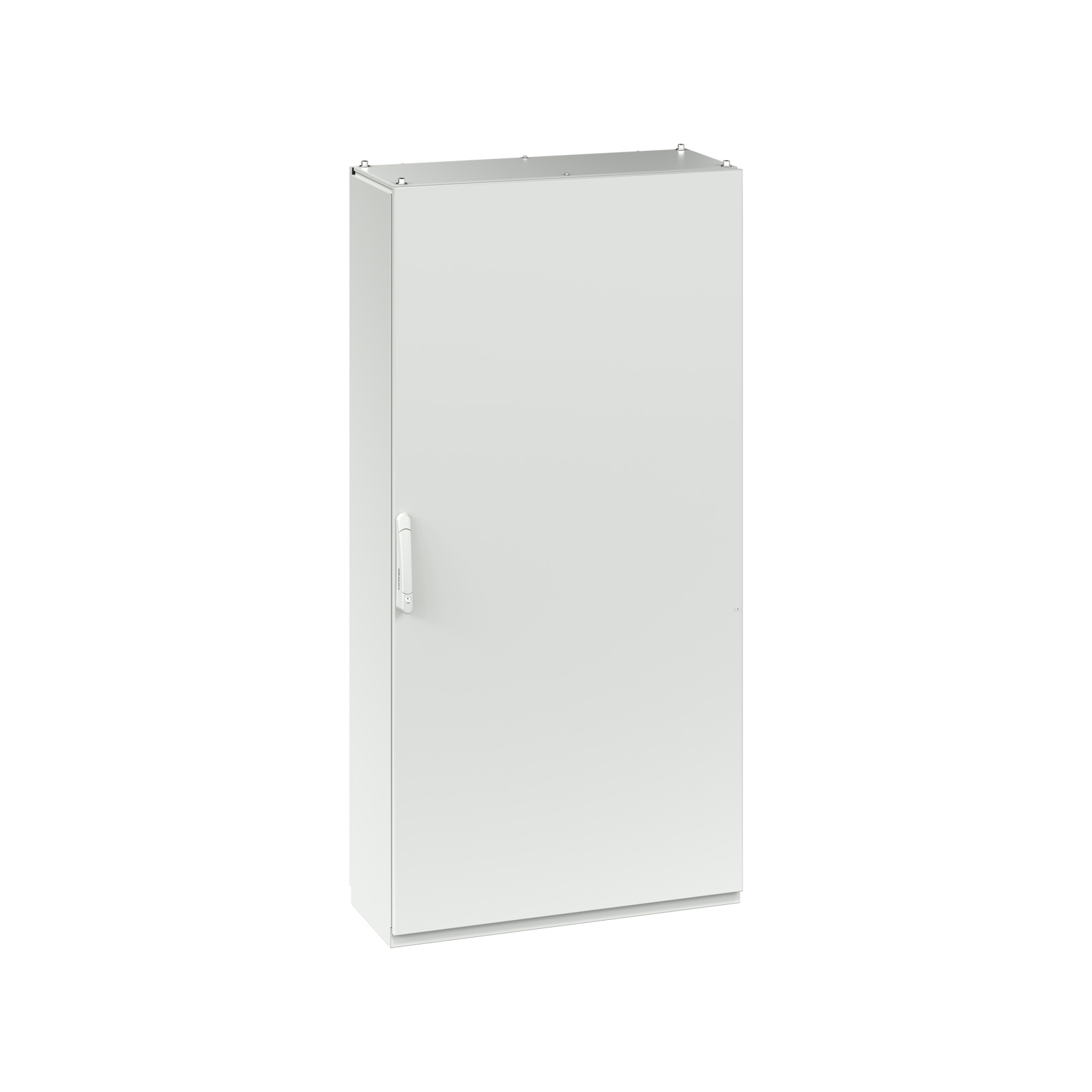

Free-standing FSM-O outdoor cabinets are made of stainless steel.

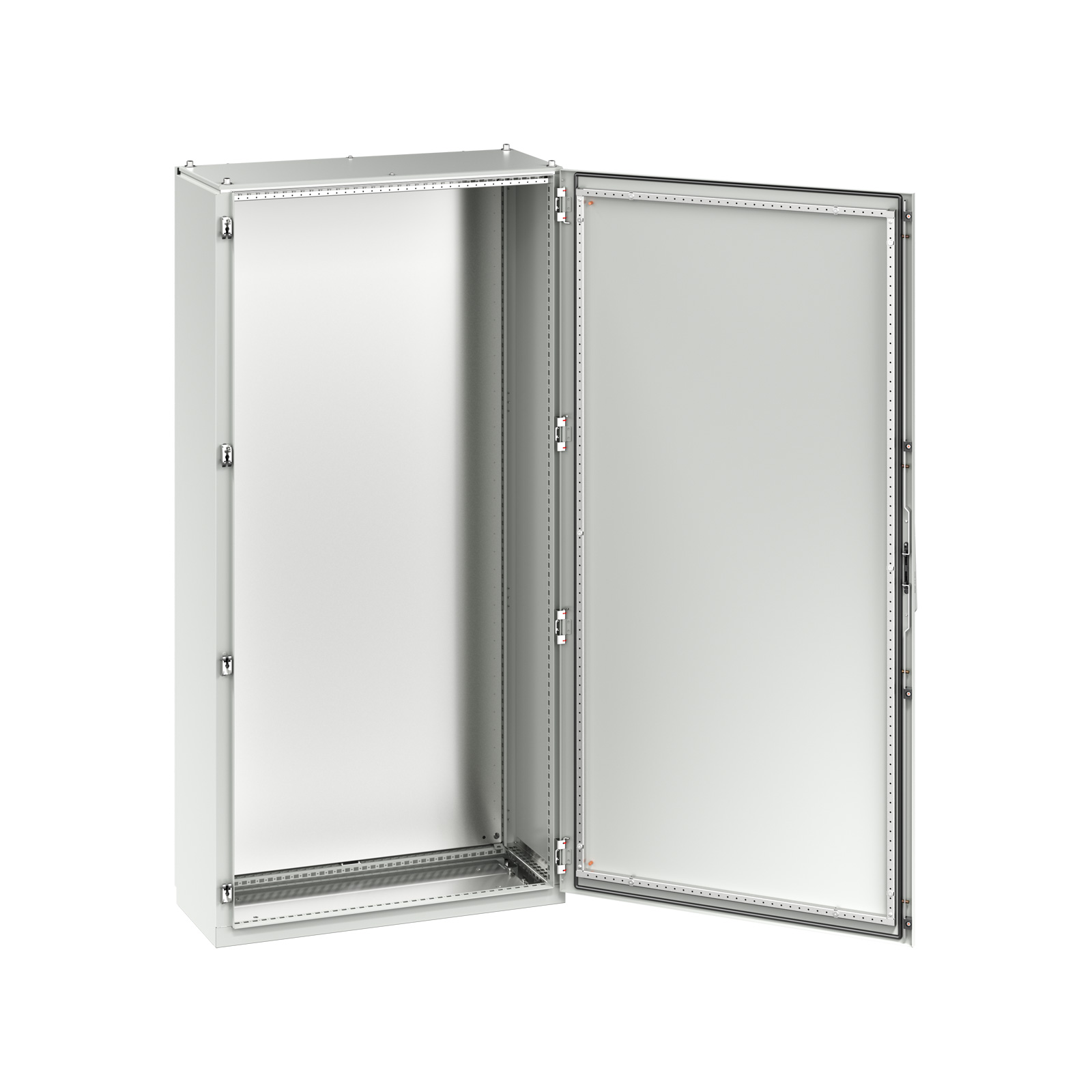

Free-standing FSM cabinets made of sheet steel with integrated side panels in the frame withstand even the harshest conditions in industrial environments. The welded cabinet chassis is made of profiled side panels joined with cross profiles. This production technology meets the highest requirements for rigidity and 700 kg load capacity of the cabinet. The design of the lower frame makes it possible to use FSM without an additional plinth. To create a variety of mounting surfaces and planes, we offer a wide range of system accessories designed for optimal use of the frame profile. We also supply components for controlling the internal environment of cabinets, such as heating units, fans with filters, and active cooling units.
| Product line name |
FSM-O cabinets - stainless steel, integrated side panels |
|---|---|
| Height (mm) |
We will recommend not only a suitable type of outdoor cabinet size, but also cooling, heating, and monitoring.
|
| Výška s obalem (mm) |
Ask for an initial remote consultation for your project. Suggest a time and we will send you a meeting invitation via Microsoft Teams by e-mail. |
| Rozsah dodávky |
Welded cabinet chassis with integrated side panels |
| IP rating |
IP55 according to the EN 60529 standard (the level of protection may decrease after mounting certain accessories) |
| Color design |
RAL 7035 for indoor use |
| Material |
Cabinet casing material: Sheet steel |
| Surface treatment |
Epoxy polyester powder paint |
| Mechanical resistance |
IK10 according to IEC 6226 |
| Quotes |
We will recommend not only a suitable type of outdoor cabinet size, but also cooling, heating, and monitoring. |
Fans help maintain appropriate temperature inside the cabinet by forced ventilation, where heated air inside is being replaced with cold air from outside the cabinet.
A switch that automatically controls the installed elements, e.g. lights, fan, air conditioning.
100 mm or 200 mm plinth as a fixed base for FSE cabinets
Perforated mounting rails to create additional mounting planes in free-standing cabinets.
Rails for FSE and FSM cabinets for mounting of heavy-weight accessories
Bars for mounting of components on the inside of the doors of FSE and FSM cabinets
Channels for the FSE and FSM cabinets are mounted on the side profiles, a mounting plate or between the side profiles of the frame (recessed mounting).
Rails for attaching 19" accessories in FSE cabinets
19" rail brackets for FSE and FSM cabinets with a width of 600 and 800 mm
Special sealing 100% waterproof ionomer tape
Mounting plate with 50x50 grid marking
Storage shelves for free-standing FSE and FSM cabinets
Partial mounting plate to create front and side mounting planes in FSE and FSM cabinets.
Replacement inserts instead of the standard 5 mm double-bar for free-standing cabinets of the FSE, FSM, FSM-X and FSM-O series.
Luminaire with rocker switch for lighting the interior of FSE and FSM cabinets
Cage nuts, screws, hinges, brackets, fasteners
