Sheet steel cabinets in one- and two-door designs with a load capacity of up to 1,500 kg. Suitable for indoor installations, can be joined to form a row.
Free-standing FSE cabinets made of sheet steel, suitable for arrangement in rows, can withstand even the harshest industrial environments.
The welded frame of the FSE cabinet is made of a special cold-rolled profile. This production technology, together with the patented shape of the profile, meets the highest requirements for rigidity and load-bearing capacity. The design of the lower frame makes it possible to use FSE cabinets without an additional plinth; this solution does not reduce the space for internal installations. To create a variety of mounting surfaces and planes, we offer a wide range of system accessories designed for optimal use of the frame profile.
Our offer also includes thermal management solutions for the internal environment of the cabinets, from heating units to fans with filters to active cooling units.
| Product line name |
FSE – can be joined in a row, sheet steel |
|---|---|
| Součást balení |
Welded frame of the cabinet |
| IP rating |
IP55 according to the EN 60529 standard (the level of protection may decrease after mounting certain accessories) |
| Color design |
RAL 7035 for indoor use |
| Material |
Frame - Electrolytic galvanized material DC1+ZE25/25APC |
| Surface treatment |
Epoxy polyester powder paint |
| Mechanical resistance |
IK10 according to IEC 6226 |
| Doporučené příslušenství |
https://www.conteg.cz/produktove-kategorie/klimatizacni-jednotky |
Fans help maintain appropriate temperature inside the cabinet by forced ventilation, where heated air inside is being replaced with cold air from outside the cabinet.
A switch that automatically controls the installed elements, e.g. lights, fan, air conditioning.
Side panels for free-standing FSE series cabinets.
Central mounting plate for freestanding FSE series cabinets.

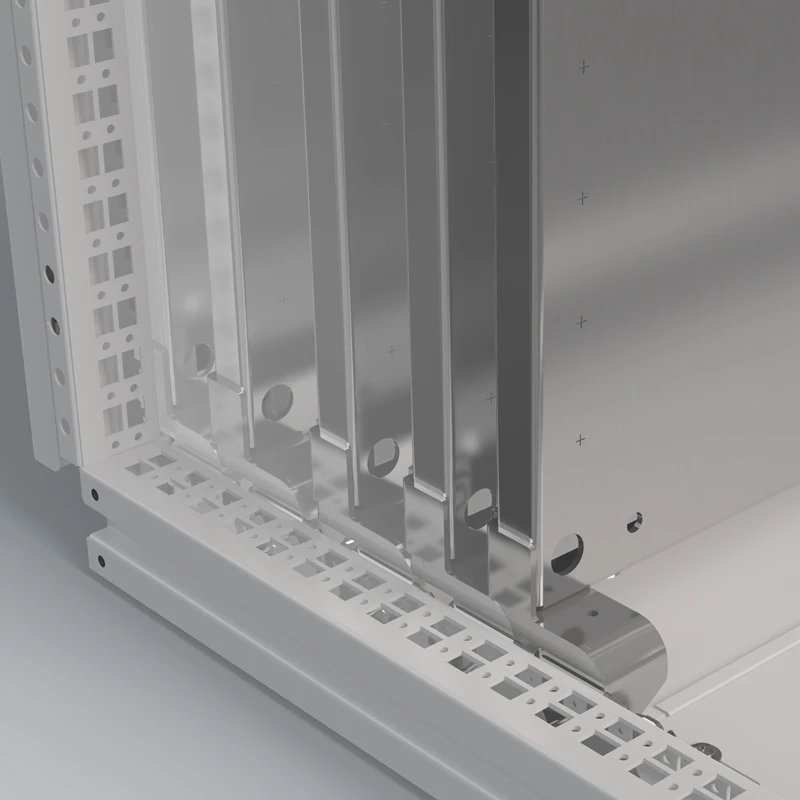

The wall is suitable for separating individual fields of FSE cabinet rows.
100 mm or 200 mm plinth as a fixed base for FSE cabinets

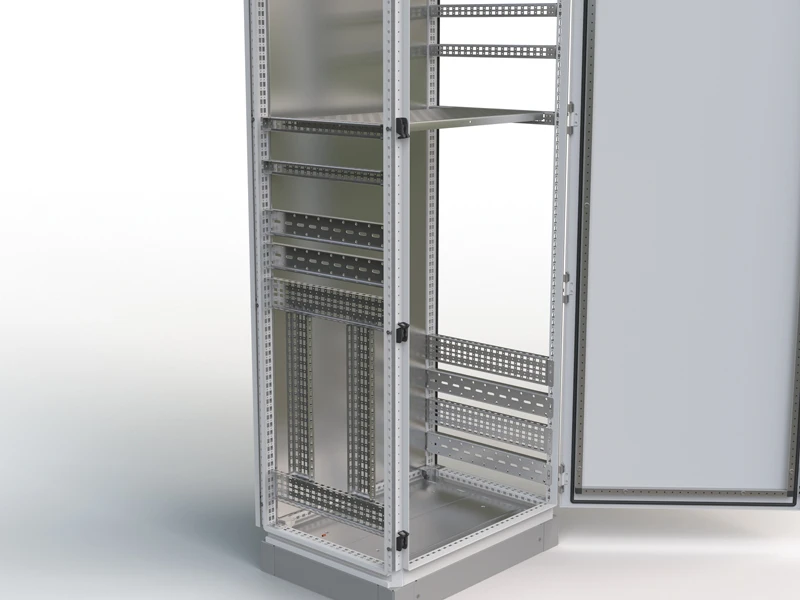

Perforated mounting rails to create additional mounting planes in free-standing cabinets.
Rails for FSE and FSM cabinets for mounting of heavy-weight accessories
Bars for mounting of components on the inside of the doors of FSE and FSM cabinets
Channels for the FSE and FSM cabinets are mounted on the side profiles, a mounting plate or between the side profiles of the frame (recessed mounting).
Rails for attaching 19" accessories in FSE cabinets
19" rail brackets for FSE and FSM cabinets with a width of 600 and 800 mm
Cable trays for cable routing with two brushes or PU seal
Special sealing 100% waterproof ionomer tape
Mounting plate with 50x50 grid marking
For additional fastening of the mounting plate and vibration reduction in FSE and FSM cabinets.
Storage shelves for free-standing FSE and FSM cabinets
Partial mounting plate to create front and side mounting planes in FSE and FSM cabinets.
Replacement inserts instead of the standard 5 mm double-bar for free-standing cabinets of the FSE, FSM, FSM-X and FSM-O series.
Luminaire with rocker switch for lighting the interior of FSE and FSM cabinets
Choose safety stickers from our standard offer or specify your own for custom production.
